McCrometer

Amerika’nın Kaliforniya eyaletinin Hemet yerleşiminde kurulan McCrometer firması, 60 yılı aşkın süredir akış ölçer üretimi yapmaktadır. Petrol ve gaz, tarım ve sulama, su ve atık su, endüstriyel proses alanlarında müşterilerin tüm beklentilerini karşılayacak tipte akış ölçerler ve primer elemanlar ürünleri arasında bulunmaktadır. Patenti McCrometer’a ait olan V-Cone debimetreler, diğer primer elemanlar arasında bir çok özelliği sayesinde üstünlük sağlamaktadır.

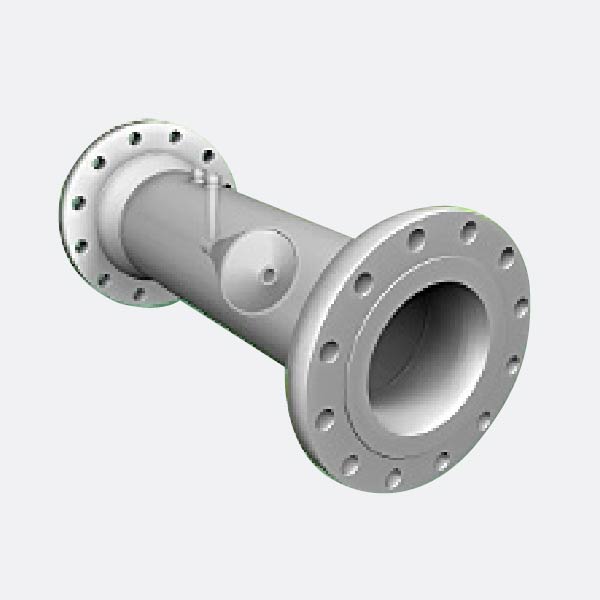

V-Cone® Akış Ölçer

Fark basınç yöntemi ile akış ölçmeye yarayan bir primer elemandır. Yüksek hassasiyete sahip, az bakım ve maliyet gerektiren
bu yöntem özellikle sıvı, gaz ve buhar ölçümleri için uygundur.

Dirsekler gibi akış profilini bozan ekipmanlar sonrasında montaj için gereksinim duyduğu çok düşük düz boru mesafesi ile
benzer yöntemler olan orifis plakalarının, venturilerin ve flow nozzleların kullanılamadığı noktalarda ölçüm olanağı tanır.
V-cone ölçüm performansı açısından diğer primer ölçüm elemanlarından daha iyi sonuç verdiği gibi, az bakım gerektirir ve
uzun ömürlüdür.

  • Gaz uygulamalarında MV transmitter ile kullanıldığında sıcaklık ve basınç kompanzasyonu yaparak düzeltilmiş akış değeri verir.
  • Tekrar kalibrasyona gerek duyulmaz.
  • Hassasiyet : ±0.5%
  • Tekrarlanabilirlik : ±0.1% ya da daha üstü
  • Montaj için minimum düz boru mesafesi gereksinimi
    (tipik olarak upstreamde 0-3 D, downstreamde 0-1 D arası)
  • 0,5” ile başlayan, 120” ‘e kadar ölçüm imkanı
  • 870oC’ye kadar çalışma imkanı

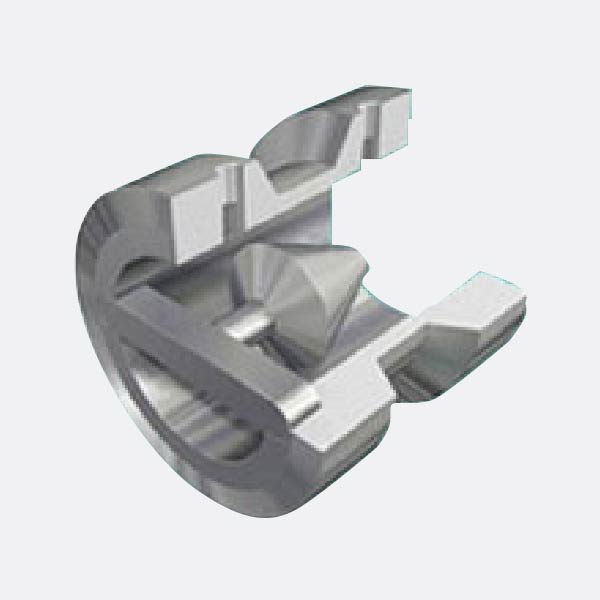

Wafer-Cone Debimetre

Wafer-Cone Debimetre

Dünyanın her yerinde, ileri gelen tesislerde mühendisler, küçük hat çaplarındaki prosesler için yüksek doğruluk/hassasiyet ve tekrarlanabilirlik sağlayan Wafer-Cone debimetre tercih ederler. Çünkü, gerektirdiği minimum düz boru mesafeleri ile montaj alanında yer kazandıran ünitenin hatta montajı kolaydır. Dar alanlı kurulumlar ve sonradan iyileştirme çalışmaları için ideal bir çözümdür. Neredeyse hiç bakım gerektirmez ve uzun ömürlü bir yaşam döngüsü ile toplam maliyetini azaltır.

Wafer-Cone, V-Cone ile aynı ölçüm prensibine sahiptir. Kendinden koşullandırma (patentli konik yapı sayesinde akış düzenleme) özelliğine sahip olması ile, öncesi ve sonrasında, minimum yada hiç düz boru mesafesine ihtiyaç duyar.

Wafer-Cone flanşsız bir tasarıma sahiptir. Değişen proses koşullarına uyum sağlamak adına içerisinde yer alan konik yapı kolayca değiştirilebilir. Yeniden kalibrasyona ihtiyaç duymaz. Bakım yada koruma gerektiren herhangi bir hareketli parçası bulunmamaktadır. Olağanüstü esnekliği yüksek performans ile birleştirir.

Wafer-Cone su ve atık su, kimya, yiyecek & içecek, plastik, farmasötik, bölgesel HVAC, tekstil, enerji ve petrol & gaz gibi endüstrilerde zorlu ve problemli olan akış ölçümleri için düşük maliyetli ideal bir çözümdür.

Anahtar özellikler:

  • Minimum düz boru mesafesi
  • Maksimum esneklik
  • Ekonomik
  • +/-% 1’e kadar hassasiyet
  • % 0.1 tekrarlanabilirlik
  • Geniş malzeme seçeneği
  • Hareketli parçaya sahip olmaması ve az bakım gerekliliği

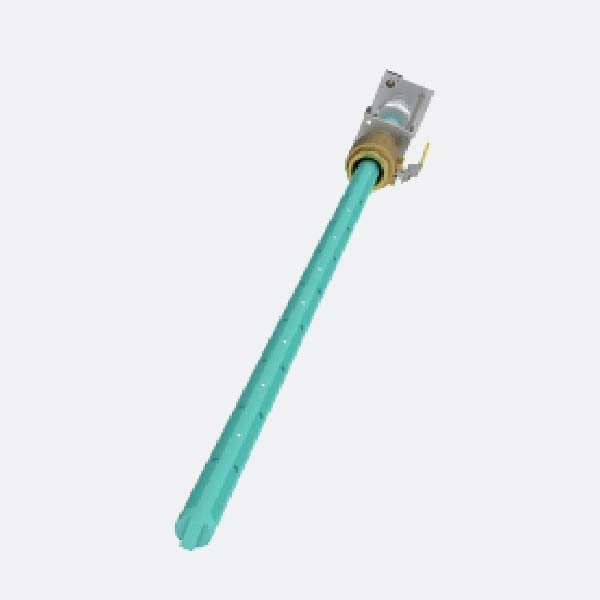

FPI Mag® Akış Ölçer

Elektromanyetik yöntem ile akış ölçümü alınır. Hat içerisindeki akışı kesmeden, diğer yöntemlere göre daha kısa sürelerde montaj (hot-tap) imkanı sunarken, akışkan içeriğine göre uzun süreli çalışma dönemlerinde minimum bakım ve kalibrasyon maliyeti gerektirmektedir.

  • 100 mm’den 3500 mm’ye kadar geniş çaplarda ölçüm imkanı
  • İletkenlik gereksinimi : min 5μS/cm
  • Hassasiyet : ±0.5% ile ±1% arasında değişen
  • Tekrarlanabilirlik : ±0.2%
  • Boru kesitinde birden fazla noktada çoklu sensörle ölçüm yapılabilmesi sayesinde yüksek hassasiyet imkanı sunar. (full akışta ±0.5%)
  • Montaj için proses özelliğine göre debimetre öncesi 1D ve
    maksimum 7D olmak üzere düz boru mesafesi gereksinimi
  • İçme ve kullanım suyu, şebeke suyu dağıtım hatları, temiz su, soğutma suyu, proses suyu, deniz suyu gibi farklı uygulamalar için olan su hatlarında kullanım imkanı

İndirilebilir Ürün İçerikleri

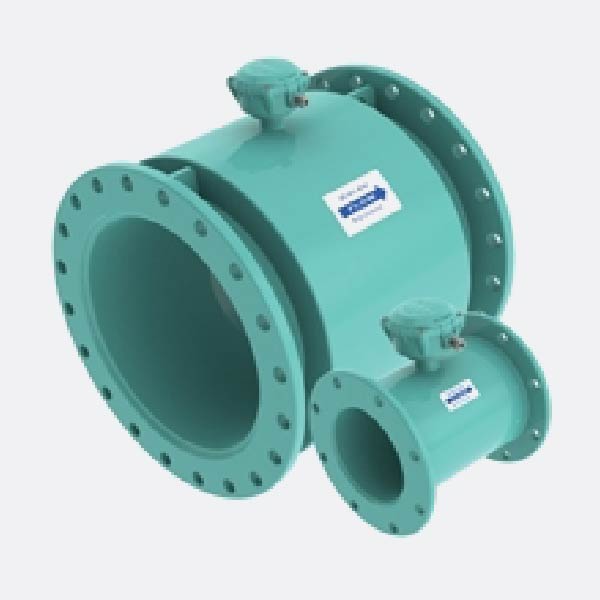

The Ultra Mag - Electromagnetic Flow Meter

Industrial or Municipal Magnetic Flow Meter
The Ultra Mag is an advanced, leading-edge magmeter. The field-proven electromagnetic flow meter was designed for the specific needs of the industrial and water & wastewater industries. The mag flow meter’s unique NSF-approved UltraLiner™ provides superior electrical insulation as well as excellent protection against corrosion and abrasion.

A New Standard for Performance
The Ultra Mag magnetic flowmeter sets a new standard for performance, ease-of-use and value. It is designed specifically for conductive liquids, slurries and sludge. These mag meters use a non-intrusive measurement element. Debris / solids will not clog the line. The Ultra Mag flow meter is excellent in harsh environments requiring minimal maintenance. These mag flow meters are ideal in water well production, pump stations, industrial / municipal water & wastewater and more. The UltraMag can be ordered with custom lay lengths to fit space requirements. Optional end connections include ANSI, DIN, JIS, smooth, and grooved ends.

Features and Benefits:

  • Fusion-bonded NSF approved epoxy UltraLiner – Durable, submersible, abrasion / corrosion resistant
  • Coil sweeps wide pipe cross section – Accurate across wide flow range
  • Accuracy: +/-0.5% of actual flow – Reliable meter that never requires recalibration water applications
  • Customized lengths and flanges – Reduces installation costs
  • Low Maintenance – Non-intrusive sensing element, debris / solids will not clog the line

İndirilebilir Ürün İçerikleri

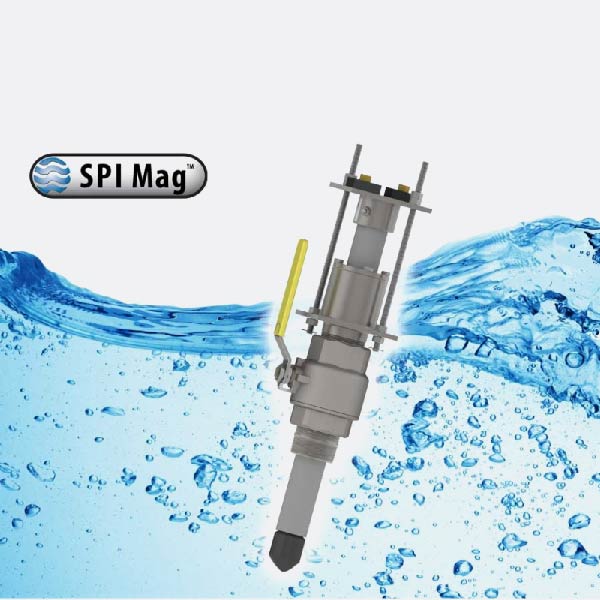

The SPI Mag Insertion Flow Meter

Municipal or Industrial Flow Solutions

The SPI Mag Insertion Flow Meter provides a highly cost-effective solution for the accurate measurement of liquid flow in closed conduit, pressurized pipe applications. Unlike conventional magnetic meters, the SPI Mag’s cost is independent of pipe size.

Ideal for Clean or Dirty Water Flow Measurement

Velocity and pipe diameter information are utilized by the SPI Mag to determine flow over wide flow ranges with a high degree of accuracy.

The SPI Mag reliably measures flow in water and wastewater as well as any type of industrial flow processes involving conductive fluids such as potable water, slurries, sludge, cooling water, and pulp stock.

  • Proven electromagnetic technology based on Faraday’s Law
  • Debris shedding, self-cleaning sensor eliminates costly maintenance
  • Cost is independent of line size
  • Easy Hot Tap Installation – no interruption of flow process

İndirilebilir Ürün İçerikleri

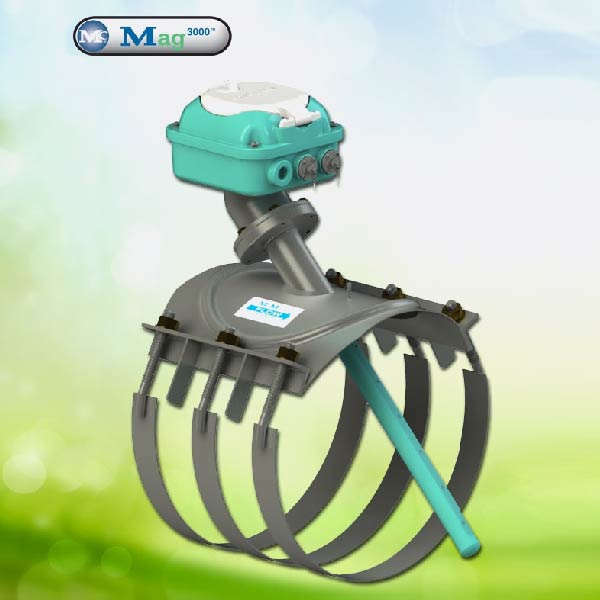

Mc Mag3000

Battery Powered Electromagnetic Flow Meter

The award-winning Mc Mag3000 provides growers and irrigators with a new alternative for flow measurement. With aguaranteed 5-year battery life, data logging capability and saddle mount design, the Mc Mag3000 delivers thedependability and ease-of-installationMcCrometer has provided to the agricultural market for 60 years.

Designed to Handle the Toughest Flow Challenges
The state-of-the-art design of the Mc Mag3000 mag meter features robust construction and an angled sensor that sheds debris, making it ideal for use in surface water, dairy lagoons, and other dirty water applications. The electromagnetic sensor measures in multiple locations to deliver ± 2% accuracy*.

The Mc Mag3000 is telemetry-ready for easy connection to McCrometer CONNECT™ wireless systems, providing easy access to remote meter data. It is available to fit line sizes from 4″ to 12″ in diameter.

İndirilebilir Ürün İçerikleri

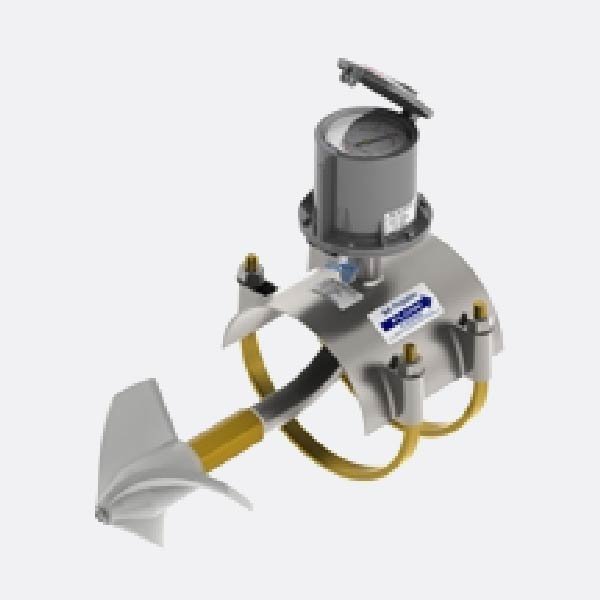

Best Selling Irrigation Propeller Meter in the U.S.

Best Selling Irrigation Propeller Meter in the U.S.

McCrometer has set the standard for liquid flow measurement performance, ease-of-use and value in the agricultural and turf markets since 1955. Our leading-edge propeller flow meters offer economical and versatile flow measurement. The Mc® Propeller meter is especially suited to dirty water flows, municipal and other high-volume water applications.

Trusted by Farmers since 1955

Unlike traditional types of water meters, the Mc Propeller uses a flexible drive-train and sealed ball bearings. Its unique design makes it easy to service in the field and requires no external power or batteries. The Mc Propeller flow meters are designed to comply with AWWA C704-08. Standard features include an instantaneous flow rate indicator and six-digit totalizer. There are no tight tolerances in the Mc Propeller. It handles solids suspended in water without clogging. With its high accuracy, this flow meter is also a water management tool, helping to reduce water costs, preventing over-irrigation and reducing leaching of chemicals and fertilizers into the ground.

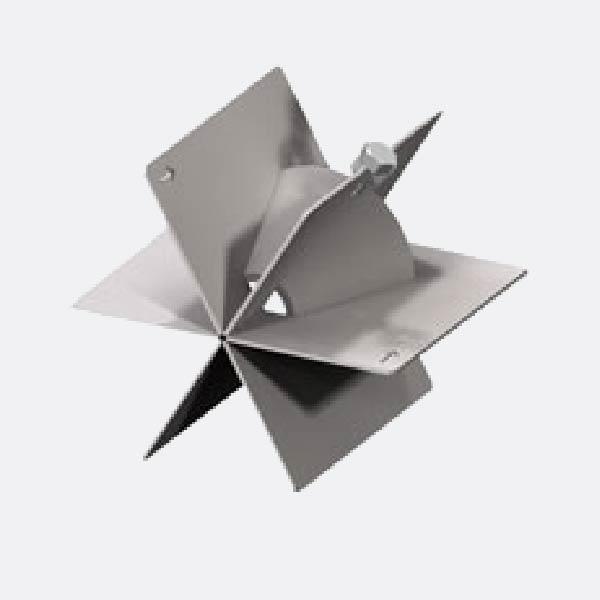

FS100 Flow Straightener

Advanced Flow Straightening with Propeller Technology

Farmers, irrigation dealers and water district engineers will find the McCrometer Mc Propeller Meter and the FS100 Flow Straightener are the ideal solution for water metering programs in agriculture and turf irrigation. The Mc Propeller’s advanced design delivers highly accurate liquid flow measurement in a rugged space-saving design that reduces installation costs, offers long-life and requires minimal maintenance.

Eliminate upstream and downstream pipe

The FS100 Flow Straightener provides breakthrough flow straightening technology that virtually eliminates the upstream / downstream straight pipe runs typically required in existing or new flow meter applications.

Requiring only 1.5 straight pipe diameters upstream and 0-0.5 downstream, the FS100 Flow Straightener when installed with the McPropeller slashes typical installation piping and labor costs by more than 50 percent, which makes it the right fit in both retrofit and brand new installations.

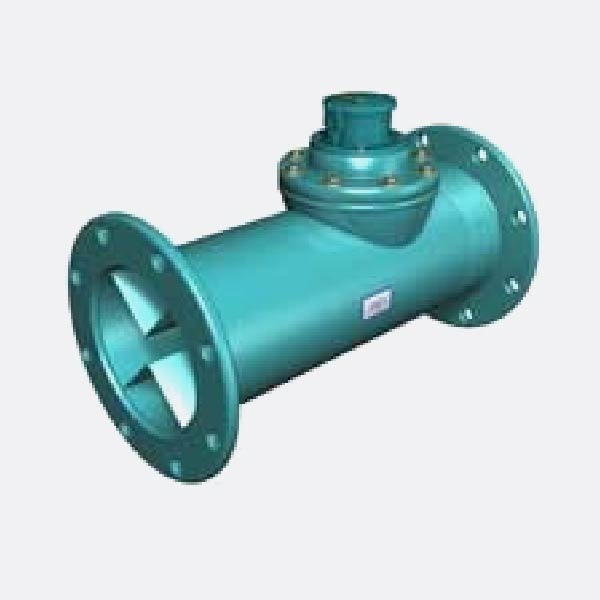

The Water Specialties Propeller Meter

Municipal or Industrial Flow Solutions

The Water Specialties Propeller Meter is the best choice for measuring clean water flows in municipal and industrial applications. The meter is engineered to deliver superior performance, low maintenance and unsurpassed durability. Meter materials and performance meet or exceed AWWA standard C704/92.

The Classic Meter for Clean Water Flows

Water Specialties Propeller Meters are manufactured using precise techniques and high quality materials. For example, long-life ceramic thrust bearings and a cast bronze gearbox produce the best propeller meter available.

Measurement accuracy is +/- 2% of reading. The meter accommodates flow ranges from 35 GPM to 200,000 GPM. The Water Specialties Propeller Meter can be installed vertically, horizontally or inclined, with sizes ranging from 2″ to 120″.

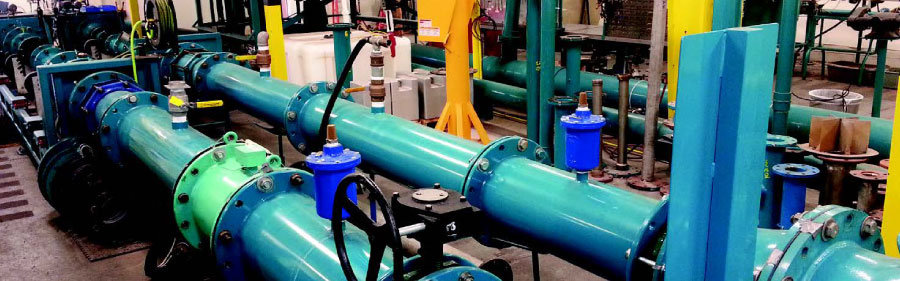

Yüksek Standartlarda Kalibrasyon Tesisleri

Kaliforniya’da bulunan iki tesiste ½ inç ve 72 inç çapları aralığındaki akış ölçerler için kalibrasyon hizmeti sunulmaktadır. Porterville’deki tesis, bir üreticinin sahip olduğu dünyanın en büyük sistemlerinden birisidir. Kalibrasyon hassasiyeti ISO 17025 akreditasyonu ile güvence altına alınmaktadır.
